Replace Computer Certificate Citrix Delivery Controller via powershell (automated)

Are you also tired of having to manually look up the APP-ID and the Cert thumbnail?

With this script these issues are all gone! It assumes you have a new computer certificate installed on the machine and you can just run this PowerShell script on a Delivery Controller.

This certificate is needed for secure connections between Storefront and ADC’s. Do keep in mind that these certificates expire…

See screenshots and script below:

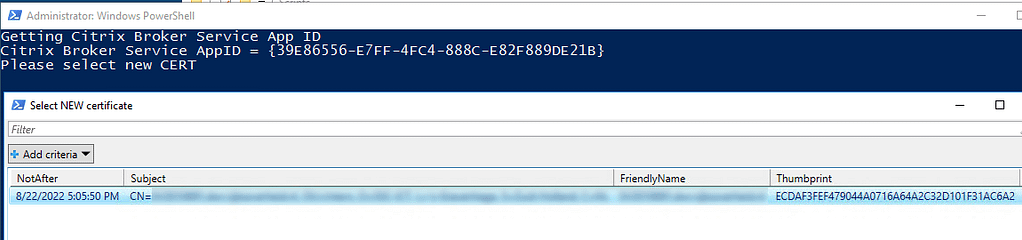

Popup will allow you to select the certificate that is installed on the local machine.
Showing the selected certificate, current binding if any and will remove these.
New certificate is bound! Reboot to finish up the steps.

##########################################################
#
#  Name      : Replace Computer Certificate Citrix Delivery Controller.
#  Created By: Silas Arentsen
#  Purpose   : Checks registery for Citrix Broker Service APPID, Prompts for the new Computer Certificate and will remove all current bindings and add new binding and ask to reboot local machine
#  Usage     : Run script on Delivery Controller as Admin.
#  Version   : 1.1
#  ChangeLog :
#  18-05-2020: Initial Release
#  30-03-2021: Fixed exiting the Cert popup
#
##########################################################
if (!([Security.Principal.WindowsPrincipal][Security.Principal.WindowsIdentity]::GetCurrent()).IsInRole([Security.Principal.WindowsBuiltInRole] "Administrator")) { Start-Process powershell.exe "-NoProfile -ExecutionPolicy Bypass -File `"$PSCommandPath`"" -Verb RunAs; exit }

Write-Host "Getting Citrix Broker Service App ID"
$appID = Get-ChildItem HKLM:\software\Classes\Installer\Products | Get-ItemProperty | where {$_.ProductName -match "Citrix Broker Service"} | foreach {$_.PSPath.ToString().Split("\")[6]}
if ($appID) {
$appID = $appID.Insert(20,"-")
$appID = $appID.Insert(16,"-")
$appID = $appID.Insert(12,"-")
$appID = $appID.Insert(8,"-")
$appID = "{$appID}"
} else {Write-Host "Error: Unable to find Citrix Broker Service"

break
}

Write-Host "Citrix Broker Service AppID = $appID"
Start-Sleep 3

Write-Host "Please select new CERT"
Set-Location Cert:\LocalMachine\My
$Cert = Get-ChildItem | Select NotAfter, Subject, FriendlyName, Thumbprint | Out-GridView -Title "Select NEW certificate" -OutputMode Single
If(!($Cert)){Write-Host "No certificate chosen, please run script again! Exit in 10 seconds...";start-sleep -seconds 10; Exit}
Write-Host "Selected $($Cert.FriendlyName) which will expire on $($Cert.NotAfter)"
Start-Sleep 3

Write-Host "Current Bindings:"
netsh http show sslcert
Start-Sleep 3

Write-Host "Removing All Bindings:"
netsh http delete sslcert ipport=0.0.0.0:443
$LocalIP = Get-NetIPAddress | Where {$_.IPAddress -NotLike "*fe80*" -and $_.IPAddress -NotLike "*127*" -and $_.IPAddress -NotLike "*::1*"}

$NewLocalIP = ($LocalIP.IPAddress) + (":443")

netsh http delete sslcert ipport=$NewLocalIP

Start-Sleep 3

Write-Host "Adding New Binding:"
Add-NetIPHttpsCertBinding -IpPort "0.0.0.0:443" -CertificateHash $Cert.Thumbprint -CertificateStoreName "My" -ApplicationId $appID -NullEncryption $false
Start-Sleep 3

Write-Host "New Bindings:"
netsh http show sslcert
Start-Sleep 3

Restart-Computer -Confirm
